The heat exchangers below are 1:1 replacements for the Funke GPLK40
Fits directly without modifying your pipework — delivered quickly from our own stock.
Installer or service company?
Installers and service companies order from their own net price list once their business account has been approved.

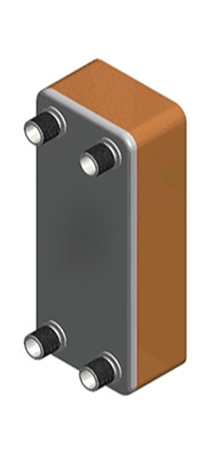

Funke GPLK 40-10-H-30 can be replaced by HEXCHANGE TS40-10H
TS40-10H
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Funke GPLK 40-10-H-30? Then choose the TS41-10H with 2× G1" + 2× G5/4" external thread.
Funke GPLK 40-20-H-30 can be replaced by HEXCHANGE TS40-20H
TS40-20H
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Funke GPLK 40-20-H-30? Then choose the TS41-20H with 2× G1" + 2× G5/4" external thread.
Funke GPLK 40-30-H-30 can be replaced by HEXCHANGE TS40-30H
TS40-30H
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Funke GPLK 40-30-H-30? Then choose the TS41-30H with 2× G1" + 2× G5/4" external thread.
Funke GPLK 40-40-H-30 can be replaced by HEXCHANGE TS40-40H
TS40-40H
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Funke GPLK 40-40-H-30? Then choose the TS41-40H with 2× G1" + 2× G5/4" external thread.
Funke GPLK 40-50-H-30 can be replaced by HEXCHANGE TS40-50H
TS40-50H
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Funke GPLK 40-50-H-30? Then choose the TS41-50H with 2× G1" + 2× G5/4" external thread.
Funke GPLK 40-60-H-30 can be replaced by HEXCHANGE TS40-60H
TS40-60H
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Funke GPLK 40-70-H-30 can be replaced by HEXCHANGE TS40-70H
TS40-70H
1:1: same port-to-port dimensions (250 × 50 mm) and connection 4× G1" external thread
Different connections on your Funke GPLK 40-70-H-30? Then choose the TS41-70H with 2× G1" + 2× G5/4" external thread.
Replacing the Funke GPLK40 with the HEXCHANGE TS40
Is there a Funke GPLK40 in your installation that leaks or is losing capacity? The HEXCHANGE TS40 takes its place without any change to the pipework.
Port centres
250 × 50 mm
Connections
4× G1" external thread
Number of plates
10 to 70 plates, 7 versions
Stock
7 of 7 versions in stock
Like the Funke GPLK40, the HEXCHANGE TS40 is a brazed plate heat exchanger: stainless steel plates brazed together with copper, so no gaskets and compact. The table above shows the matching version for each type number — keep the number of plates of your current unit and the replacement fits exactly.
Matching insulation, brackets and connection sets can be ordered directly on the product page. Not sure which version you need? Send us the type or a photo of the nameplate via the contact form and you will receive a no-obligation quote within one working day.
Frequently asked questions about replacing the Funke GPLK40
Will the HEXCHANGE TS40 fit my Funke GPLK40 without modifications?
Yes. The replacement has the same port-to-port dimensions (250 × 50 mm) and the same connections, so the existing pipework does not need to be modified. Do check the connections on your current unit: the TS40 has 4× G1" male thread and the TS41 has 2× G1" + 2× G5/4" male thread — both are listed above.
Is the replacement for the Funke GPLK40 available from stock?
7 of the 7 versions are in stock in our warehouse in Oosterhout, the Netherlands, and are delivered quickly. The other versions are available on request.
Which plate counts are available?
The replacements are available from 10 to 70 plates, in 7 versions. Choose the version with the same plate count as your current Funke GPLK40.
What does it cost to replace a Funke GPLK40?
Request a no-obligation quote; you will receive pricing within one working day. Call us for expert advice: +31 (0)162 429 068.
