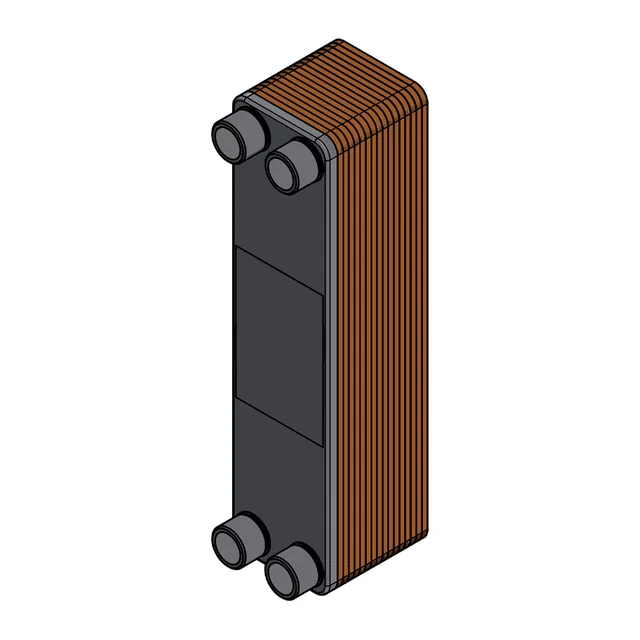

TS20-24 (4x G3/4" & 18mm solder)

Product description

The TS20-24 model, a brazed heat exchanger, boasts a compact design and a versatile combination connection. It can function with a G3/4'' external threading, and additionally offers an 18mm recess suitable for soldering.

This TS20-24 heat exchanger is interchangeable 1 to 1 with the following types without the need to modify the piping.

  • Alfa Laval CBH18-23H
  • Alfa Laval CBH18-24H
  • Cetetherm Cetepac CP405-24
  • Funke GPL 3-24-H-30
  • Funke GPLK 30-24-H-30
  • GEA WTT GBS220H-24
  • GEA WTT WP 22-24
  • Kelvion GBS 220H-24
  • Sondex SL23TL-24
  • SWEP B8THX24
  • SWEP E8THX24

Product specifications

Article number

Previously viewed

TS20-24 (4x G3/4" & 18mm solder)
TS20-24 (4x G3/4" & 18mm solder)



Out of stock, delivery time on request


€144,00 *
