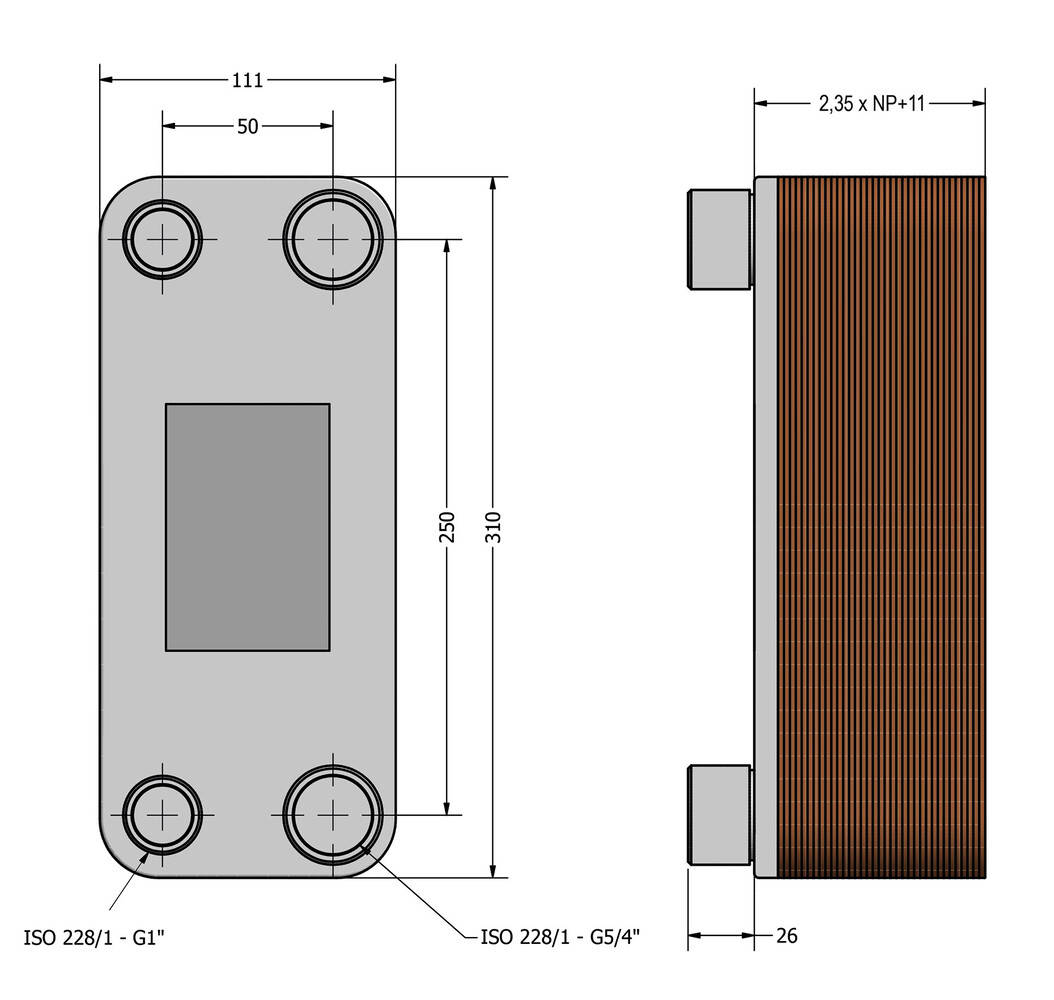

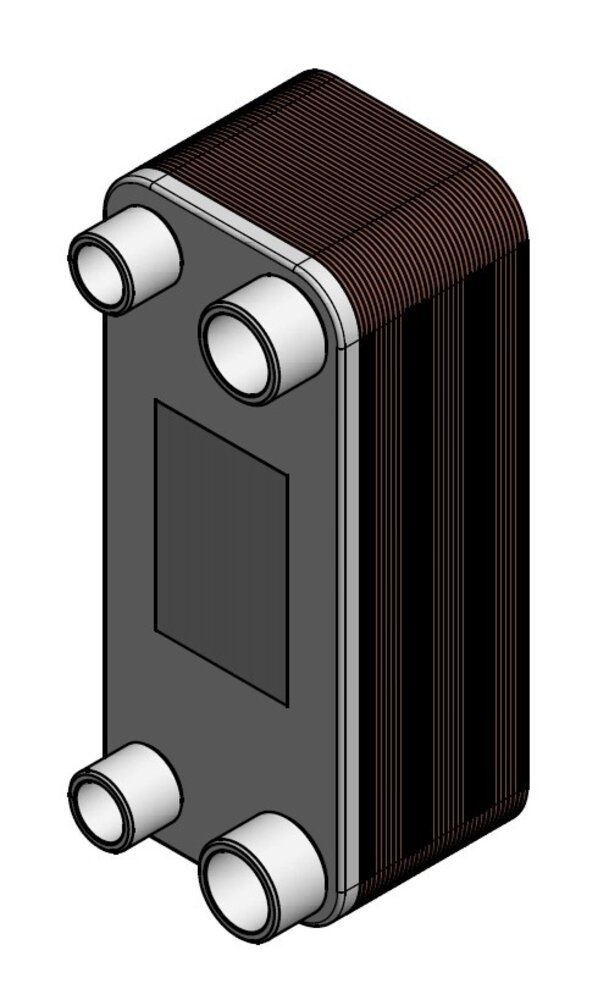

TS41-10H (2x G5/4'' & 2x G1'' male thread)

The TS41-10H brazed heat exchanger has a compact design but, despite its compact design, it still has a relatively large connection. It is equipped with a G1'' external thread on one side and a G5/4'' external thread on the other side. Both sides can also be soldered due to the recess in the connection (22mm and 28mm).

This TS41-10H heat exchanger is interchangeable 1 to 1 with the following types without the need to modify the piping.

• Alfa Laval CB26-10H
• Alfa Laval CB27-10H
• Alfa Laval CB30-10H
• Cetetherm Cetepac CP610-10
